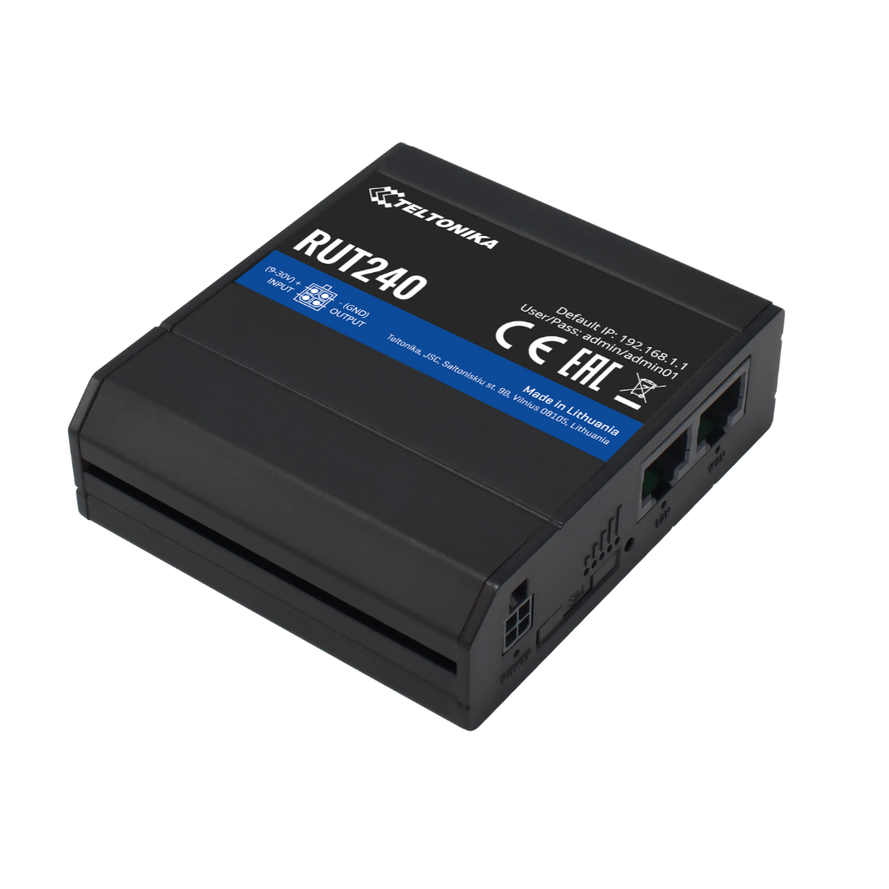

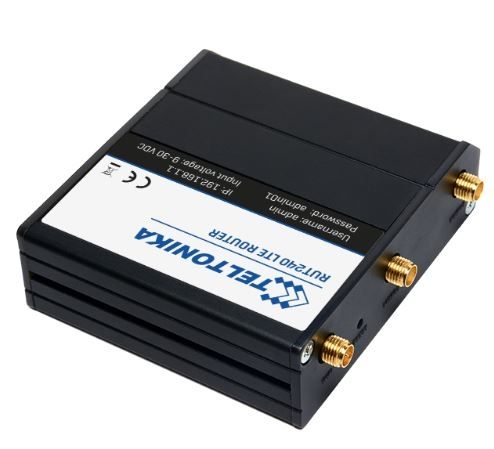

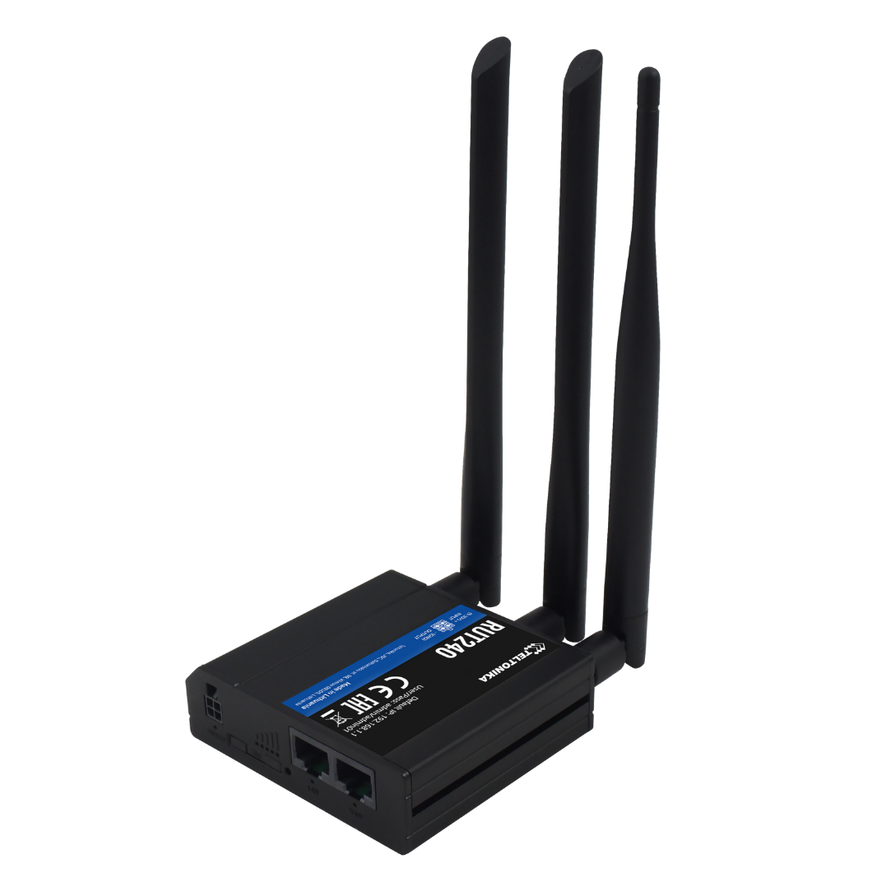

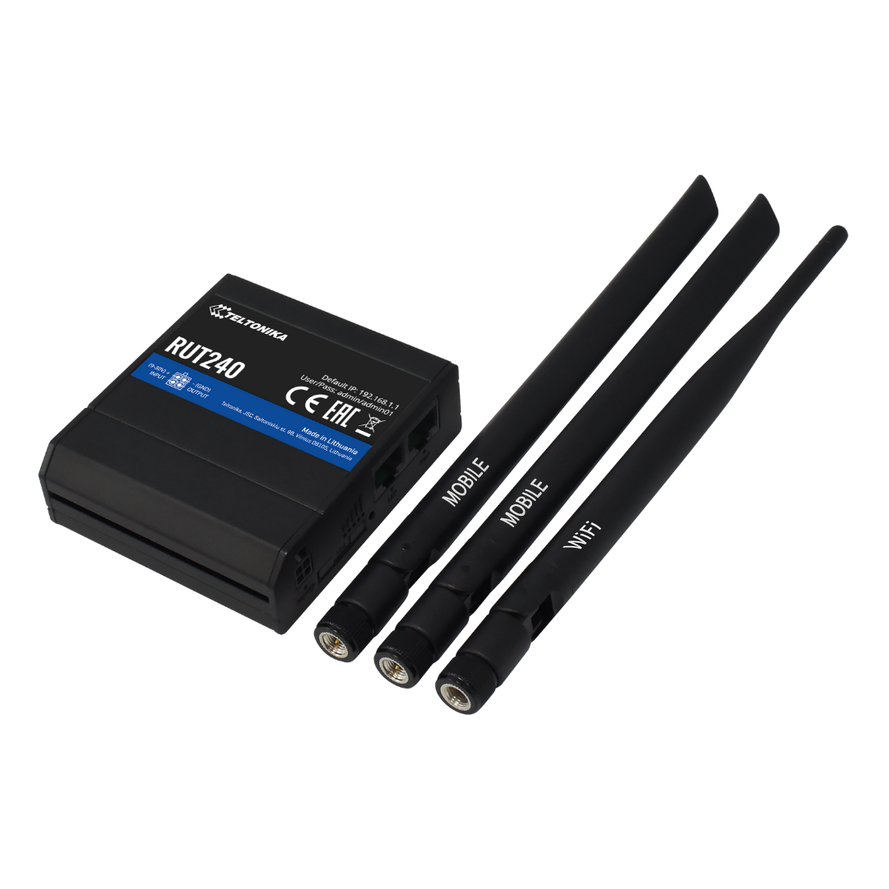

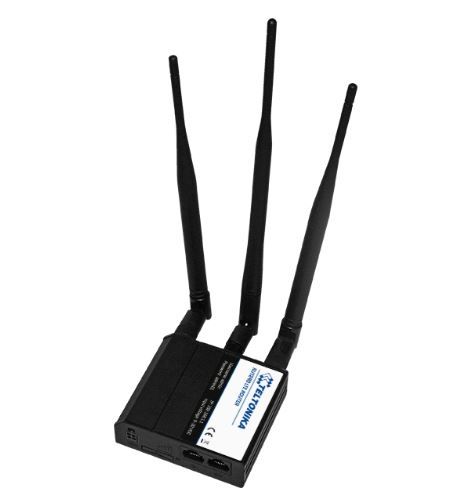

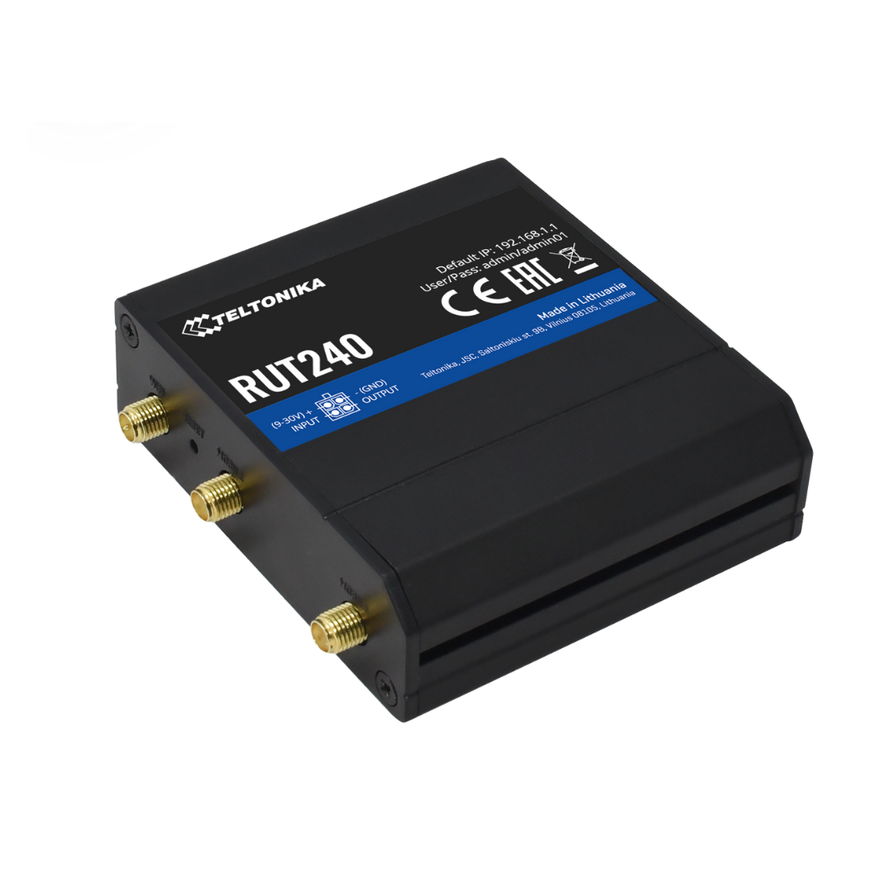

Teltonika RUT240 4G WLAN Reititin

4G (LTE) – Cat 4 jopa 100 Mbps, 3G – Jopa 42 Mbps, 2G – Jopa 236.8 kbps.

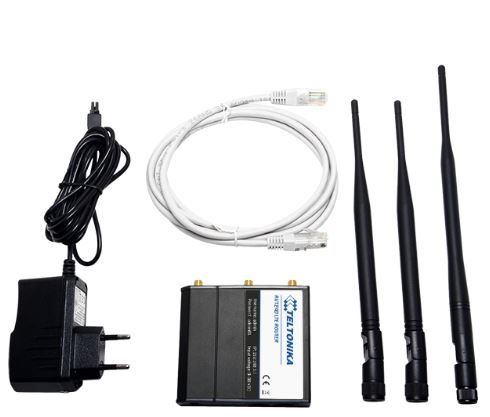

Paketissa mukana:

• Reititin RUT240
• Euro virtalähde
• 2 x LTE antenni(kääntyvät, SMA uros)
• 1 x WiFi antenni (kääntyvä, RP-SMA urlos)
• Ethernet kaapeli(1.5 m)
• Pikaohje

LTE:

• LTE FDD: B1/B3/B5/B7/B8/B20
• LTE TDD: B38/B40/B41
• LTE CAT4 up to 70 Mbps DL
• Class 3 (23dBm±2dB) for LTE FDD
• Class 3 (23dBm±2dB) for LTE TDD

UMTS/DC-HSPA+:

• 850/900/2100 MHz
• DC-HSPA+ mode: Max 42Mbps (DL) Max 5.76Mbps (UL)
• UMTS mode: 384 kbps DL, 384 kbps UL
• TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL)
• Power Class 3 (24dBm +1/-3dB) for UMTS bands
• Class 3 (24dBm+1/-3dB) for TD-SCDMA

GSM/GPRS/EDGE:

• 900/1800 Mhz
• GPRS/EDGE Multi-slot Class 12
• Power Class E2 (27dBm ±3dB) for EDGE 850/900
• Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900
• Power Class 4 (33dBm ±2dB) for GSM 850/900
• Power Class 1 (30dBm ±2dB) for GSM 1800/1900

ETHERNET:

• IEEE 802.3, IEEE 802.3u standards
• 1 x LAN 10/100Mbps Ethernet port
• 1 x WAN 10/100Mbps Ethernet port
• Supports auto MDI/MDIX

WIFI:

• IEEE 802.11b/g/n WiFi standards
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401-2.495GHz WiFi frequency range
• 20dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

Saatavilla olevat versiot
